Most buyers ask about wattage first, and it is rarely what decides whether a handheld laser welder suits the shop. Three answers narrow the field faster: which metals and thicknesses you weld, how many parts go through in a day, and how long the machine has to run without a break. Once you know those, compare the points below, roughly in the order they matter.
Cooling comes first if the machine runs all day
A laser welder makes heat inside the machine, and how it gets rid of that heat decides how long it can run at full power. There are three common designs:
- Air cooling. The cheapest to build. Many air-cooled units are rated for intermittent use, and their output can drop as the shop warms up.
- Water cooling. Better for continuous work, but someone has to look after the chiller and the water circuit.

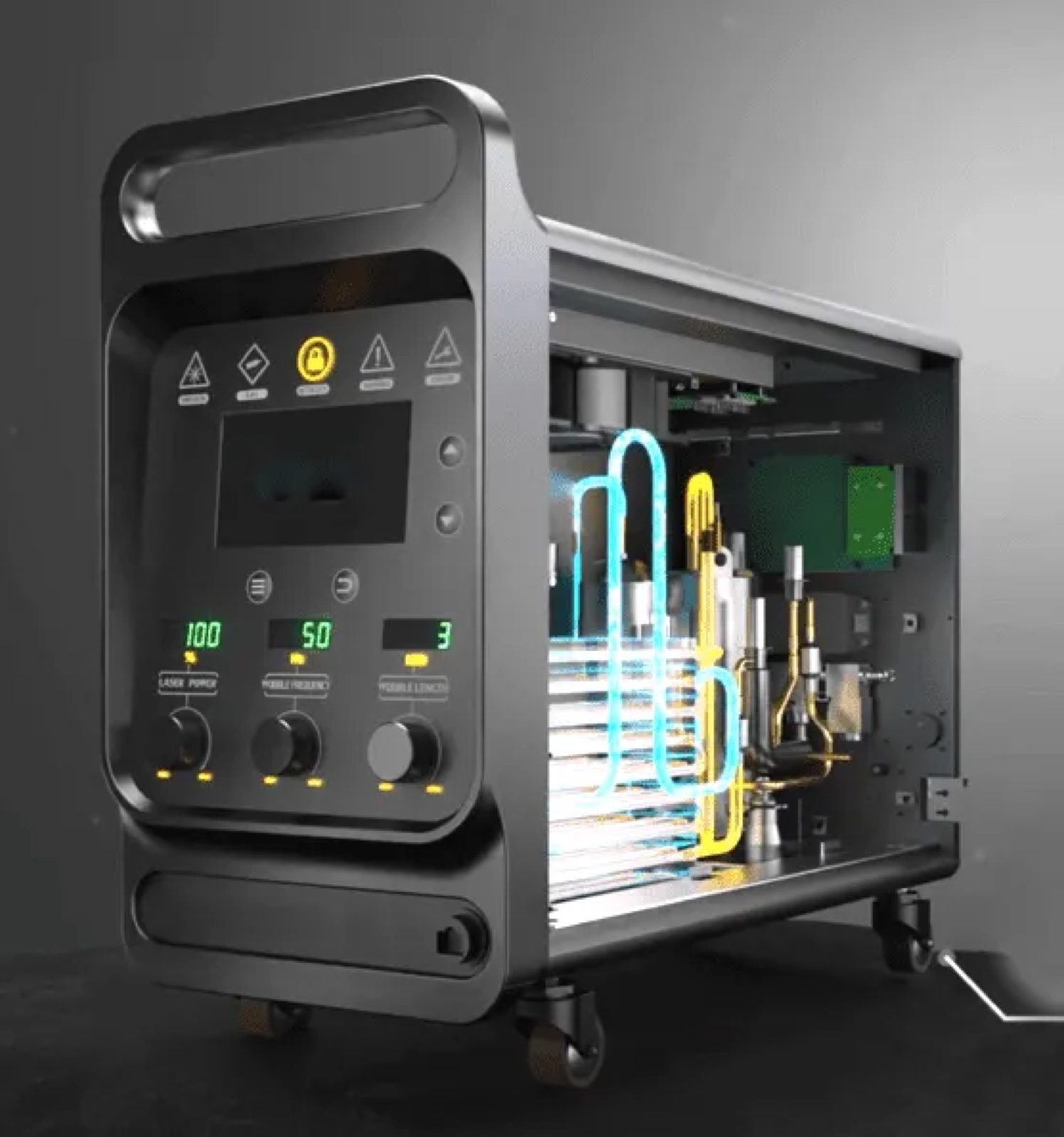

- Refrigerant cooling (heat pump). A closed refrigerant loop carries the heat away, much like an air conditioner. Output stays steady over a wide temperature range, and there is no water circuit to maintain.
If the welder will run more than a couple of hours a day, give the cooling system more weight than the power rating.
Pick the power for the material, not the nameplate
Power sets how deep the weld goes and how thick a joint you can make at a given speed. As a rough guide:
- 900W to 1200W: thin aluminum and stainless steel, in low-volume work.
- 1500W to 2000W: the most common range in general fabrication. It covers standard-gauge metals and works across a mix of materials.
- 2500W to 3000W and up: heavy fabrication, thicker steel and production work in metals other than aluminum.
More power than you need mostly adds cost. Check the thickness tables for the exact model before you decide.
Production welding needs a wire feeder

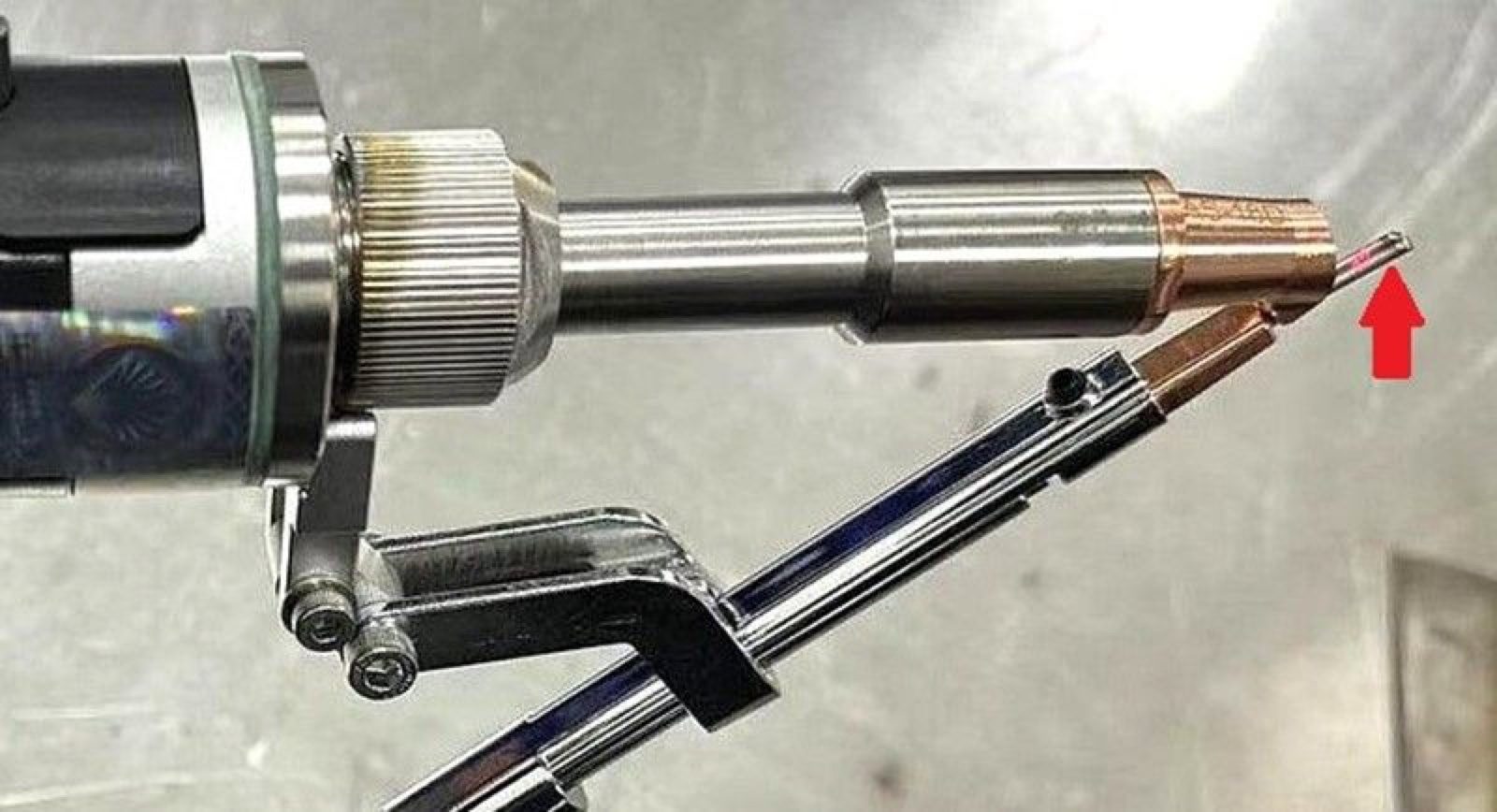

Any joint that is not a perfect butt joint needs filler wire, and few real-world joints are perfect. Look for a feeder that runs standard welding wire instead of a proprietary spool, and that feeds smoothly at low speeds.
A wobble head makes fit-up more forgiving
A wobble head moves the beam in a small oscillating pattern. That lays down a wider seam without slowing the travel speed, so the weld tolerates small gaps and contoured parts better.
Torch weight shows at the end of the shift
A torch that feels light for ten minutes can wear an operator out over a full shift. Ask for the weight in grams instead of accepting "lightweight" from a brochure. A lighter torch also gives better control on curves, which helps weld quality.
Laser safety and paperwork
A handheld laser welder is a Class 4 laser. Operators should wear eyewear rated for the laser's wavelength. Minimum OD 5; prefer OD 7 or 8. In the US, the manufacturer has to certify that the laser product meets the FDA performance standard, so ask the supplier for the paperwork for the exact model. A supplier who cannot answer clearly deserves a second look. Our laser safety page explains what the documents mean.
Warranty and support
Some sellers resell machines without a service team of their own. That does not make the equipment poor, but it can make support harder to reach. Ask how far away the nearest technician is, whether you can reach technical support during your working hours, and what the warranty covers and for how long.
Where the Ascent welders fit
Ascent offers two lines of handheld fiber laser welders, both cooled by a refrigerant heat pump with no water circuit:

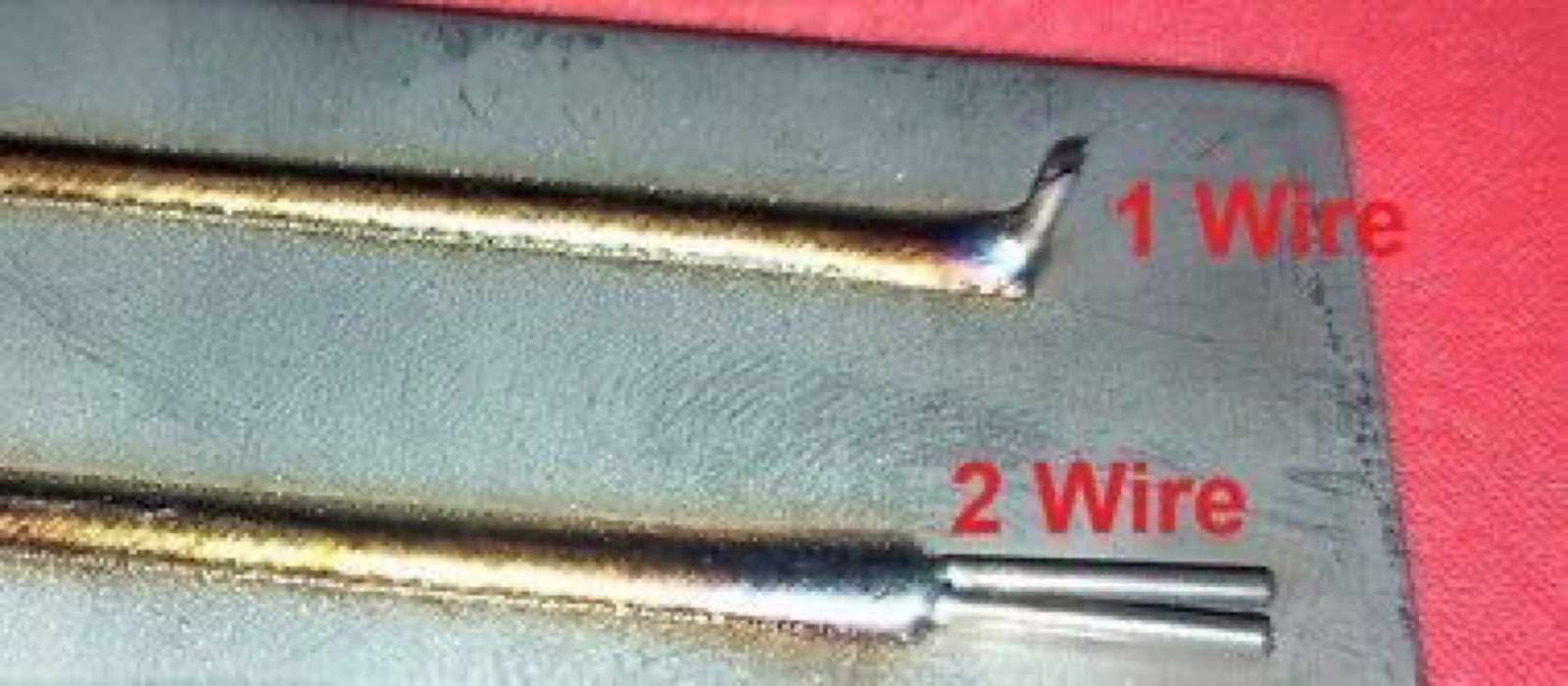

- The refrigeration laser welders come in 1500W, 2000W and 3000W models, with a 1.32 lb (600 g) torch, a high-speed wobble head and a dual wire feeder.
- The STR Series has five models from 900W to 3000W and is rated from -30°C to +60°C.

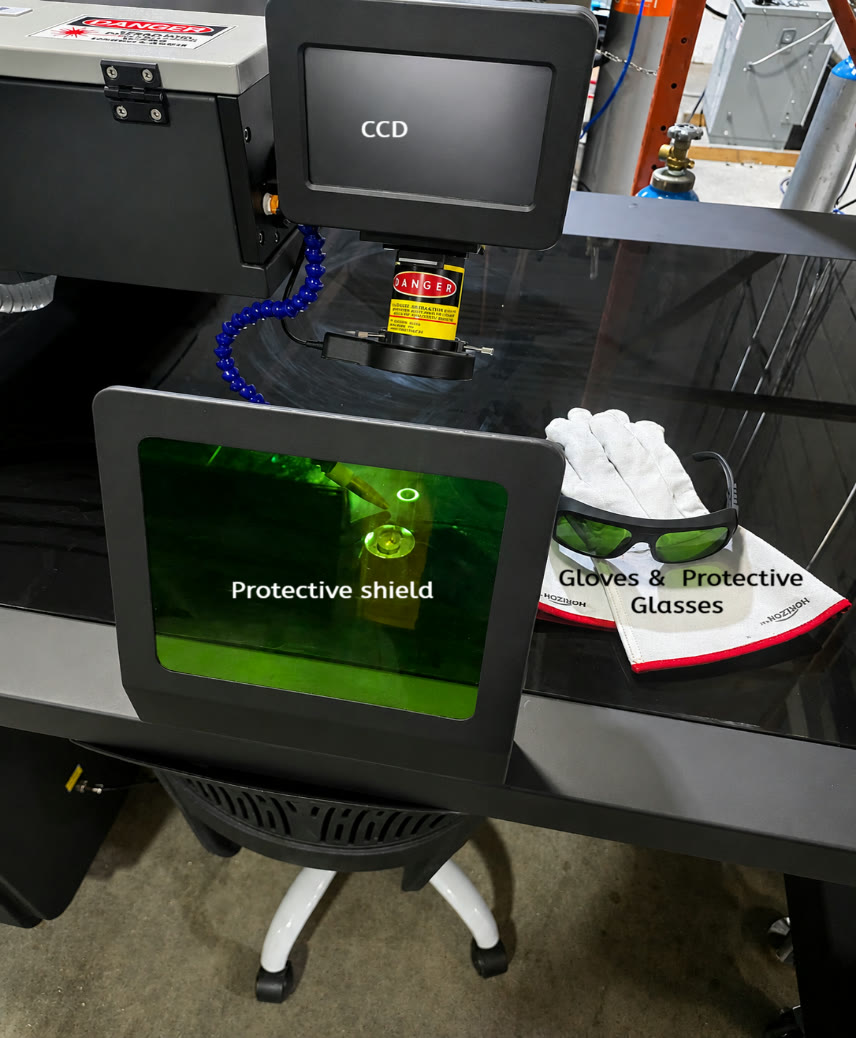

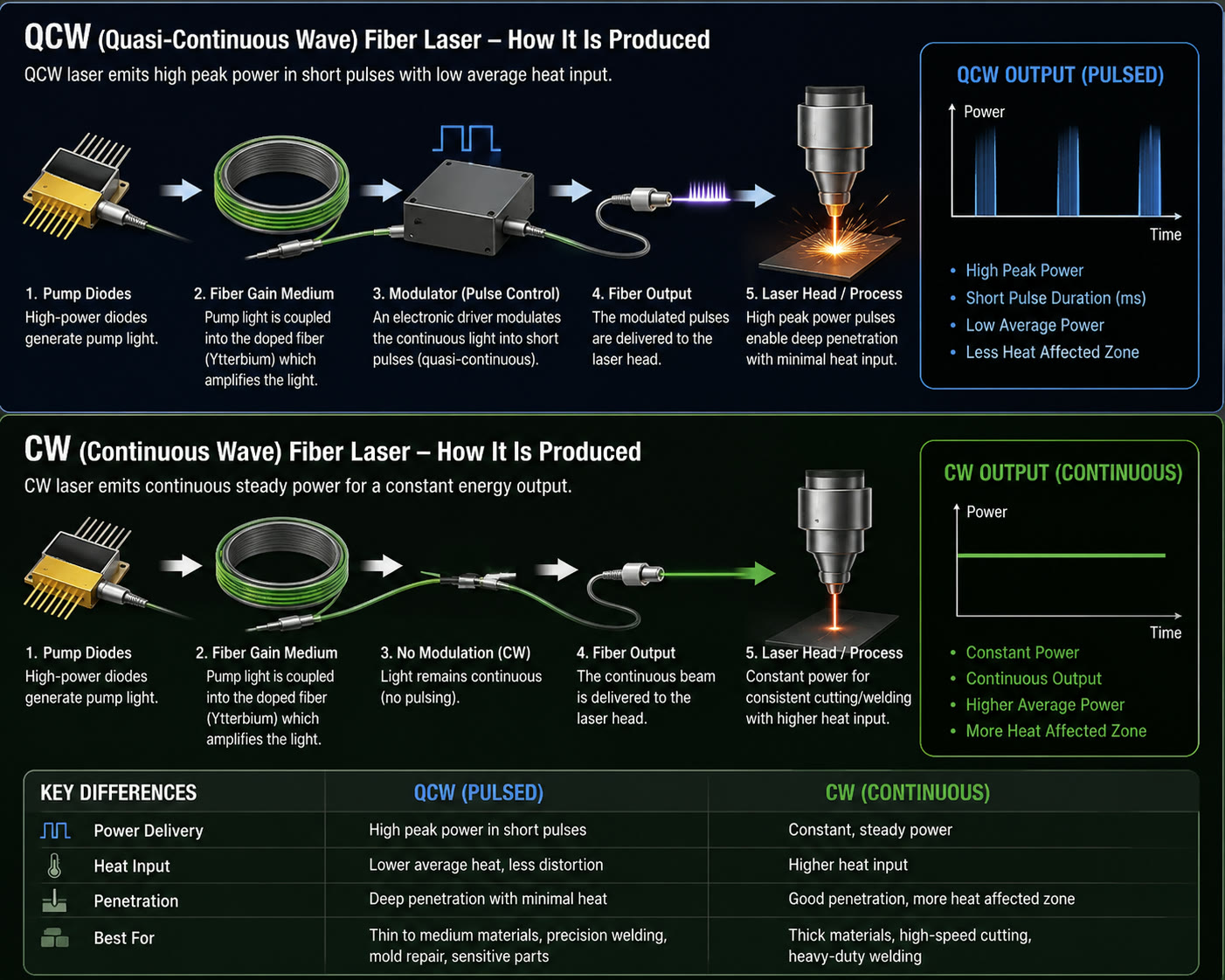

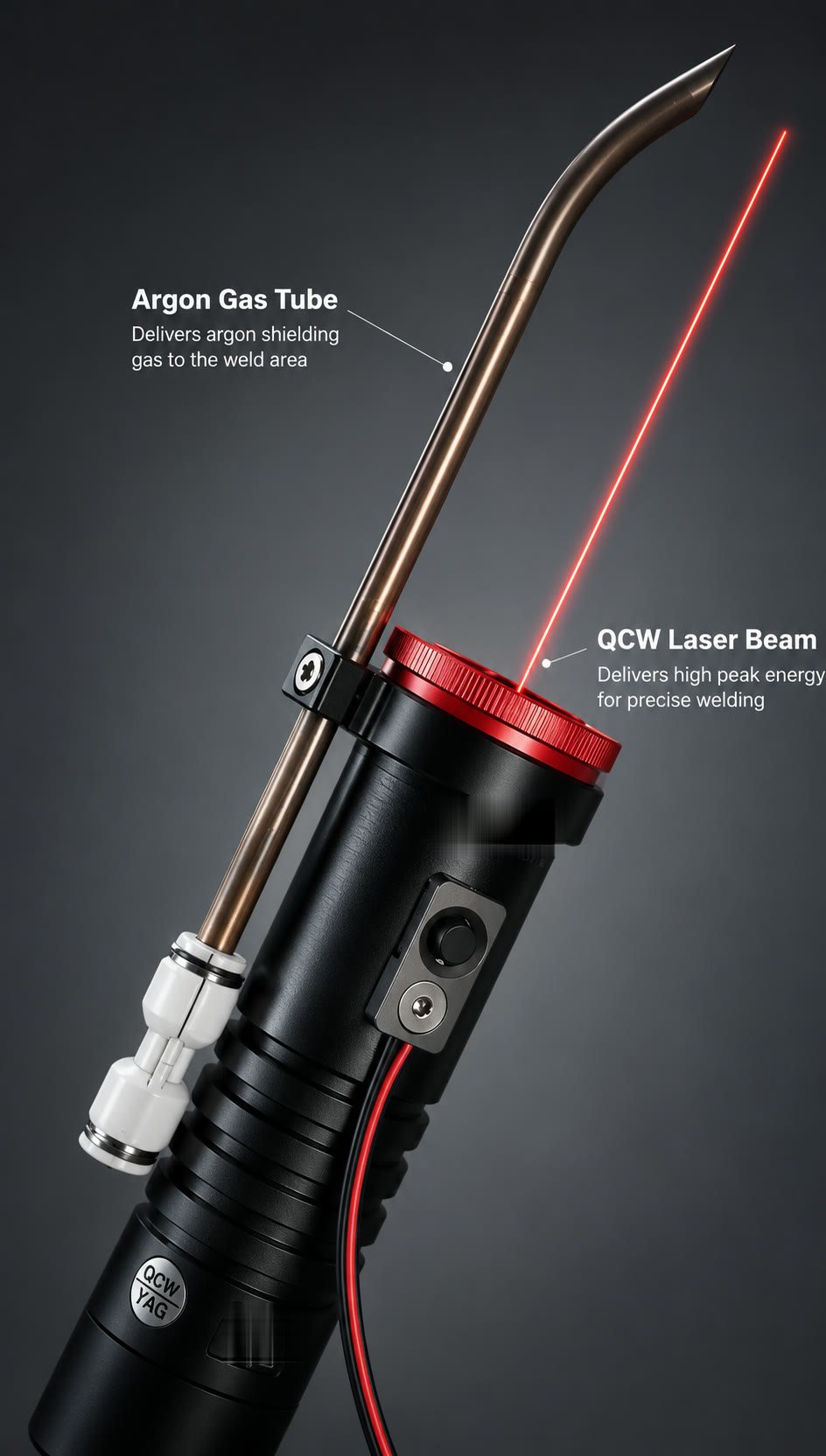

Both are rated for a 100% duty cycle. Installation and operator training at your facility are included in the price, the handheld welders carry a 2-year warranty, and technicians work out of Buffalo, Toronto and Kentucky. For small, thin parts, the QCW tabletop and handheld welder switches between a bench station with a CCD camera and a handheld torch.
Frequently asked questions
Which handheld laser welder is best for general fabrication?
No single feature decides it. A 2000W welder with a wire feeder and a wobble head covers most shops that weld standard-gauge metals. If your parts are small and thin, look at a tabletop QCW welder that can also run handheld.
Do I need 3000W?
Usually not. What you weld matters more than raw power. Extra power pays off when the shop welds thicker steel regularly.
What does a handheld laser welder cost?
The Ascent 2000W handheld laser welder is USD $28,000 and the 3000W is USD $34,000, including shipping, installation and training. Ask for a quote based on your own materials and volume.
Can it replace my MIG or TIG welder?
For much thin and medium work, yes. Laser welds are usually faster, distort the part less and need less finishing. Some thick structural work and some dissimilar-metal joints still call for conventional welding.
Is installation and training included?
Yes. Ascent installs every machine at your facility and trains your operators. Training takes 3-4 hours.
How quickly can a new operator learn it?
After 3-4 hours of qualified training, an operator who has never welded aluminum can weld very thin aluminum. The operator remains responsible for completing the required training, following approved process controls and meeting every laser-safety requirement.
